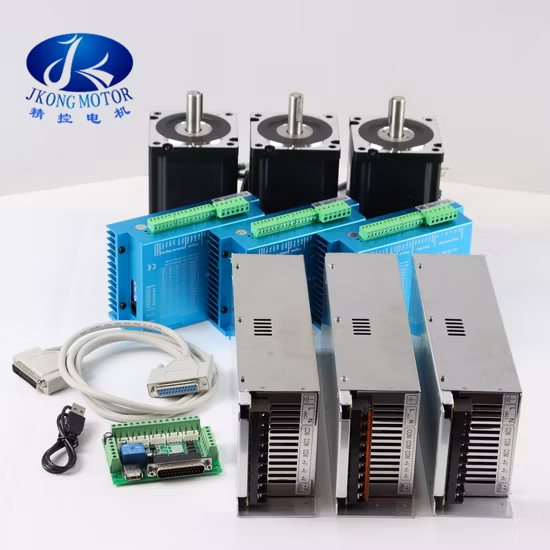

86 Hybrid Servo CNC Kit Closed Loop Stepper Motor

86 Hybrid Servo CNC Kit Closed Loop Stepper Motor

Applications: Used for robots stepper motor, Electronic automatic equipment stepping motor, Medical instrument stepping
SHARE

Description

Basic Info
Model NO. JK86HSN120
Application Printing Equipment
Speed Constant Speed
Number of Stator Two-Phase
Excitation Mode HB-Hybrid
Function Control
Number of Poles 2
Operate Mode Drip-Proof
Type Electromechanical
Certification ISO9001, CE and RoHS
Brand Jkongmotor
Name NEMA34 Closed Loop Stepper Servo Motor
Key Words 3 Axis 4 Axis Stepper Motor Kits
Kind Hybrid
Step Angle 1.8 Degree
Size 86mmx86mm
Current 6A
Holding Torque 4.6n.M - 13 N.M
Resistance 0.27 - 0.44 Ohm
Usage CNC
with 1 Driver Hsd86
with 2 Power Supply
with 3 Mach3 Breakout Board
Transport Package 40PCS/Carton
Specification CE, ROHS and ISO
Trademark JKONGMOTOR
Origin Changzhou, China
HS Code 8501109990
Production Capacity 100000PCS/Month
Product Description

86 Hybrid Servo CNC Kit Closed Loop Stepper Motor

86 Hybrid Servo CNC Kit Closed Loop Stepper Motor

86 Hybrid Servo CNC Kit Closed Loop Stepper Motor

86 Hybrid Servo CNC Kit Closed Loop Stepper Motor

86 Hybrid Servo CNC Kit Closed Loop Stepper Motor


Closed Loop Servo Stepper Motor / Easy Servo Stepper Motor Series

Motor series

Phase No.

Step angle

Leads No.

Motor size

Holding Torque

Nema 23

2 phase

1.8 degree

4

57x57mm

1.8

N.m

Nema 23

2 phase

1.8 degree

4

57x57mm

2.2

N.m

Nema 23

2 phase

1.8 degree

4

57x57mm

3.1

N.m

Nema 24

2 phase

1.8 degree

4

60x60mm

3.1

N.m

Nema 24

2 phase

1.8 degree

4

60x60mm

4.0

N.m

Nema 34

2 phase

1.8 degree

4

86x86mm

4.5

N.m

Nema 34

2 phase

1.8 degree

4

86x86mm

8.5

N.m

Nema 34

2 phase

1.8 degree

4

86x86mm

12

N.m

Nema 42

3 phase

1.2 degree

4

110x110mm

20

N.m

Nema 52

3 phase

1.2 degree

4

130x130mm

30

N.m

Above only for representative products, products of special request can be made according to the customer request.

Applications:

Used for robots stepper motor,

Electronic automatic equipment stepping motor,

Medical instrument stepping motor,

Advertising instrument stepper motor,

Lighting& audio equipment stepper motor,

Printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.

Note: We can also manufacture products according to customer's requirements.CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
