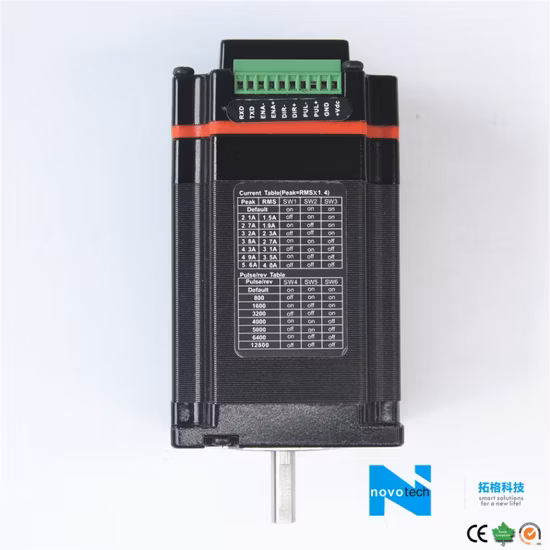

Integrated Stepper Motor& Driver/Drive built-in Novotech's stepper driver represents the highest level in domestic.,with


Basic Info
Model NO. 57IO22
Operate Mode Driving
Type Magnetic-Electric
Certification ISO9001, Ce,RoHS
Brand Novotech
Name Integrated Stepper Motor& Driver/Drive Built-in
Transport Package Green Export Package
Specification NEMA
Trademark Novotech
Origin China
HS Code 8501310000
Production Capacity 1000000 PCS/Year
Product Description
Integrated Stepper Motor& Driver/Drive built-in

Integrated Stepper Motor& Driver/Drive Built-in

Integrated Stepper Motor& Driver/Drive Built-in

Integrated Stepper Motor& Driver/Drive Built-in

Novotech's stepper driver represents the highest level in domestic.,with 32-bit DSP technology, parameter auto adjustment function, automatic optimization of operating parameters for different motors, to maximize motor performance. Built-in Micro-sub-technology, in the low micro-step conditions, the motor can run smoothly, temperature rise and noise are 30% to 50% lower than traditional driver,and the high speed torque increases 20%.

Model Guide
Motor type 57IO09-0957IO22-0957IO0957IO22
Holding torque 1.0N•M2.2N•M1.0N•M2.2N•M
Motor current4.0A4.8A5.2A5.6A
Step angle / motor pole pair 0.9°/100 pairs pole0.9°/100 pairs pole1.8°/50 pairs pole1.8°/50 pairs pole
Recommended applicationIn the low-speed has small vibration,operation smoothIn the high-speed output strength is good
Operation voltage12-50Vdc,typical voltage 36Vdc
Overvoltage protection66V±2V
Voltage control method32-bit DSP control technology
Pulse limit frequency500KHz(factory default 200KHz)
Protectionovercurrent, overvoltage and undervoltage alarm
Input signal Pulse, direction and enable signal receive singleend/differential input,Interface level is only 5Vdc,
other levels need external current limiting resistor
Subdivision Default 1600 / rev, through the DIP switch or debugging software to set the subdivision (200-51200)

Subdivision Setting

Current setting
Output peak currentOutput RMS currentSW1SW2SW3
Default 1.5A[PK]ONONON

Integrated Stepper Motor& Driver/Drive Built-in


Note : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area.

Our products are widely used in 3d and inject printers, CNC routers, Engraving Machines, Stage Lighting Control, Security Surveillance, Video Equipment, Laser workstation, Carving Machine, Office Automation,Smart Toy, Digital Controlled Machinery,Analytical and Medical Instruments, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, High Speed Dome Camera,Robotic and other automatic equipment.

Packaging and shipping
1.Outer packing: Standard export carton with required shipping marks2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded 3.As per the clients requirements

Our service
1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.3.Warrantity period : 18 months and Life-long maintenance service for the product.4.We accept products customize.

Q1: How to choose the suitable stepper or servo motor?A1: There are serveral important items: size, length, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.Q2: Any other methods to finalize the model?A2: Sure, you can send us the model you are using, we can help you find the suitable one.
Q3:How to guarantee the Quality of Industrial Parts?A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.Q4:What's the Advantage of Your Parts for Industry Products? A4:1.The advantage of our products is the competitive prices, fast delivery and high quality. Ouremployees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time.
2.Before we send out the goods,we check them more than three times.
