86hb250-80b NEMA 34 Hybrid Servo Kit 4.5n. M Closed Loop Stepper Motor with Driver Hb860MB
Description
Basic Info
| Model NO. | 86HB250-80B Hybrid Servo Kit |
| Certification | CE |
| Flange | NEMA 34 (86mm) |
| Step Angle | 1.8 Degree |
| Current / Phase | 4.5 a |
| Motor Length | 103 mm |
| Motor Weight | 3.6 Kg |
| Transport Package | Carton Box with Foam |
| Specification | 15*12*12cm |
| Trademark | Lunyee |
| Origin | Henan, China |
| Production Capacity | 20000 Pieces/Month |
Product Description
Product Description

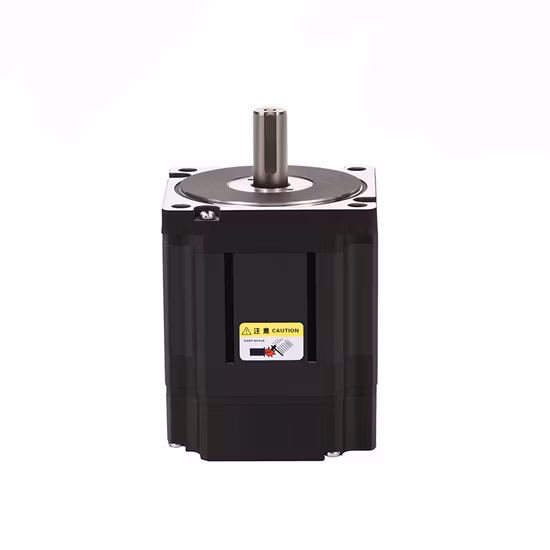

1.8° 86HB250-80B Nema 34 Hybrid Servo Kit Closed Loop Stepper Motor 4.5N.m Easy Servo Built-in Encoder With Driver HB860MB
| Model No. | Step Angle (°) | Motor Length(mm) | Current( A ) | Resistance(Ω) | Inductance( mH ) | Hording Torque(N.m) | Voltage(V) | Weight(Kg) | Driver |
| 86HB250-80B | 1.8 | 103 | 4.5 | 0.43 | 2.6 | 4.5 | 12-60 | 4.6 | HB860MB |
86HB250-80B is a closed loop stepper motor built-in integrated encoder with the driver HB860H. The motor wire is made of pure copper. The encoder can effectively provide a feedback to the work of the motor, which can improve work efficiency and accuracy. The driver adopts the latest DSP advanced variable current and variable frequency control algorithm. 86HB250-80B with the driver HBS86H can effectively solve the problem of lost steps of the open-loop stepper motor, and improve the processing speed and accuracy of the machine.
Hybrid Stepping Servo Driver HB860MB & Dimensions:
Parameter of HB860MB Driver:
Driver Parameters | HB860MB | |||
| Minimum value | Rated value | Maximum value | Unit | |
| Continuous output Current | 0 | - | 8 | A |
| Input Voltage | 24 | 50 | 80 | VAC |
| Logic input Current | 7 | 10 | 20 | mA |
| Pulse Frequency | 0 | - | 200 | kHz |
| Insulation Resistance | 500 | - | - | MΩ |
| Cooling Method | Natural cooling or Using external radiator | |
Operating Environment | Occasion | Try to avoid dust, oil mist and corrosive gas |
| Temperature | 0ºC~50ºC | |
| Humidity | 40~90%RH | |
| Vibration | 10~55Hz/0.15mm | |
| Holding Temperature | -20ºC~65ºC | |
| Weight | About 0.6Kg | |
HB860MB is our company's new new generation of hybrid digital display servo driver, using the latest 32-bit DSP digital processing technology. The drive control algorithm adopts a new dedicated motor control DSP chip and applies vector-type closed-loop control technology. It has the following characteristics:
1. Position error correction and never lose steps 2. Quick response and perfect acceleration, High torque at high speed 3. Automatic current adjustment based on load, lower temperature rising 4. Over-current, over-voltage and position ultra difference protection function 5. Drive nema 34 series 4.5 N.m, 8.5 N.m, 12.5N.m closed loop stepper motor 6. Voltage range: 24V~80V
Application & Packing
The product is suitable for various automation equipment and instruments in the field of motion control, such as: electronic processing and testing, laser cutting and welding, packaging machinery, engraving machines, marking machines, cutting machines, clothing plotters, CNC machine tools, automated assembly equipment, etc. It is the first choice in fields where users expect low noise, superior high-speed performance and strong price-performance competition.
Our closed loop motor models include Nema 17, Nema 23, Nema 24, Nema 34, Nema 42. If you want to know more, please contact me.
Packing List:
1*Motor & 1*Driver
Packing Details:
1. Carton box with foam 2. Box can be customized as your requireme
Delivery: We usually ready goods and stocks within 3-10 days after receiving the payment. However, the lead time may vary due to different product models and the quantities. If you want to know more, please contact me.
About Us
Henan Lunyee Industries Development , as the Chinese leading provider of factory automation (FA) solutions, has been specialized in manufacturing and exporting automation motors worldwide for decades. We are committed to providing one-stop industrial automation solutions for global small and medium-sized enterprises, serving the world, and pushing China's high-quality industrial products to the world at the same time. We offer:
1) AC/DC gear motors, precision planetary gearboxes (spur/helical gears) and stepper motors/drivers for servo systems.
2) Linear bearings, guides & blocks for linear motion system.
3) Precision locking nuts and couplings in FA rotary/transmission parts.
4) Customized machining components. WE FOCUS ON CUSTOMER SATISFACTION! To achieve our goal of "Full Customer Satisfaction", we insist on innovation and improvement in quality, assembling time, working life, operating procedure and maintenance service. We also focus on human environment's health and safety. We have got other related certificates like ISO9001, CE, CCC and UL. Adhering to this aim, we sincerely look forward to establishing win-win cooperation with clients all over the world.
FAQ
1. How to choose a motor to match my machine ?Please give us the key parameters of the motor. Here are some important specifications we need: holding torque, step angle, motor length, voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.
2. How can we know the product quality?We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
3. Are you motor manufacture?
Yes, we are motor manufacture, we develop and produce the motors and drivers by our own factory.
4. Do you have the products in stock?Most of conventional products with stock, except special requirements.
5. Can you offer OEM/Printing logo on samples?Yes, but the price is different according to different logo styles such as letters, photo, size, colors ect. For more detail, please send message to our sales service.
