Hot Sales 990 Series 3 Axis CNC Controller for Lathe Used CNC Control System Servo Motor

Hot Sales 990 Series 3 Axis CNC Controller for Lathe Used CNC Control System Servo Motor

Overview Hot Sales 990 Series 3 Axis CNC Controller for Lathe Used CNC Control System Servo Motor Product DescriptionSZG


Basic Info
Model NO. SZGH-CNC990TDb-3
Power Source Electric
Controlling Mode CNC
Automatic Grade Manual
Setting Mode Floor-type
Precision High Precision
Certification CE, ISO 9001
Condition New
Power Szgh-CNC990tdb-3
Input Voltage 3 Axes
Diaplayer 8 Inch Real Color LCD
CPU 32bits
User Store Room 128MB
Function PLC ,Atc and Macro Function
Analog 2-Channel Analog
Color Gray Black
Feeding Speed 15m/Min
Max Screw Processing Thread Pitch 1000mm
Keyword CNC Controller
Product Name Controller System
Type1 CNC System
Type2 CNC Lathe Controller
Type3 CNC Turning Controller
Transport Package Carton
Specification 49*32*28
Trademark SZGH
Origin Shenzhen
HS Code 8537101101
Production Capacity 1000 Sets /Month
Product Description
Hot Sales 990 Series 3 Axis CNC Controller for Lathe Used CNC Control System Servo MotorProduct DescriptionSZGH-CNC990TDb-3 is 3 Axis(X Z C(Y)) economic type Lathe CNC Controller ,with 8.4 inches display(800x600) ,2 analog spindle ,2ms interpolation in high speed, support ATC , PLC and macro function. which obviously improve the efficiency,precision and surface quality of parts processing. New USB interface,it shupports the file operation and program running in flash disk
Model SZGH-CNC990TDb-3
Axis 3 Axis
Display 8.4 inch color screen
Interface USB+RS232 Communcation Port
Support Built -in standard PLC Progarm , and can be customized edited according to cutsomer's request
Basic I/O 40*24
Function Support Macro function, PLC ladder function, support all type of the turret , max 99 tools
After Warran Video technical supports , Online supports
Detailed Photos

Hot Sales 990 Series 3 Axis CNC Controller for Lathe Used CNC Control System Servo Motor

Product Parameters

Features:1)Adopt ARM and DSP, FPGA and hardware interpolation technology .2)The max speed is 20 m/min, feeding speed is 10 m/min3)32Mb user store room.4)800x600 7.5 inch real color LCD displayer.5)Touch screen main and sub panel.6)High anti-jamming switch power.7)USB movable U disc copy interface.8)RS232 interface.9)Spindle servo speed control/spindle frequency convenient speed control.10)max screw processing thread pitch is 1000MMTechnical specification:X,Y ,Z three axis latheliner, circular, spiral line interpolation instruction.min input unit:0.001mm.program size range:± 99999.999.Feeding speed:0.001-10m/minMax speed: is 20 m/min length Compensationtool radius automatic compensationRS232 and U flash connection portSpindle servo speed control/spindle frequency convenient speed control.max screw processing thread pitch is 1000MMI/O 24X24 input and outputSystem operation condition:1) Power supplyingAC 220V(+10%/-15%), Frequency 50Hz±2%. power:≤ 200W.Note:it must use isolation transform to supply power,first input:380V2) Climate conditionoperation condition:temperature 0~45°C,relative moisture & transportation condition:temperature -40~55°C,relative moisture <93%(40°C).atmosphere pressure:86-106kpa.3) operation environment :No excessive flour dust, no acid, no alkali gas and explosive gas, no strong electromagnetic interference. Application: Mini-type special lathe machinery,CNC lathe machinery,hardware processing industry,and automatic equipment,etc.

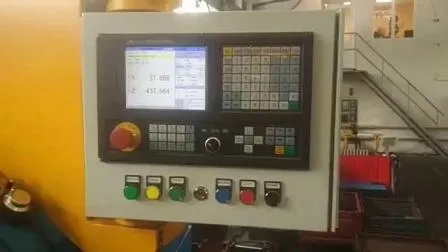

  • CNC Application
The application is from our client !! It is with our SZGH-CNC990TDb CNC lathe controller.Beautiful!Powerful!Stable!It is easy to operate!CertificationsCompany Profile

Shenzhen Guanhong Automation CO.,LTD (Formerly known as 'Shenzhen Guanhong Automation Co.,Limited(Built in 19 November 2010)') is one of the leading CNC & automatic company in China, specialized in designing projects, marketing, and oversea trading, having extensive experience in CNC package solution, Our focus has been on providing the high quality of Industrial robot arm Lathe CNC system, Milling CNC system, Engraving CNC system, Grinding & router CNC system, Motor & driver, Spindle servo motor & driver, Gear reducer.

SZGH' products have been in working with a wide variety of CNC machinery and automatic processing equipment with high performance and good precision, stably. We have now established a reliable structure , our experienced engineers and technicians are able to provide professional consultancy and offer you most suitable CNC application solution.

Our strict quality control measures guarantee excellent reliability and high standard of quality. Utilizing advanced CNC machinery to test every product, 100 percent inspection is made before packaging and shipment. Moreover, We also offer flexible lead times to support your business.

We have a large number of customers across Asia, America, the Middle East, Europe, South America, and Africa. Specially we already built own business corporate group in Middle East market.

Why Choose Us ?

1:more than 10 years development and production, we are manufacturer2:12-24 month warranty3: more than 40 patents 4:Free training and easy operation5: We can response 24 hours as you needAfter Sales ServiceBest & Professional after- sales supports Our company have very professional engineers teams ;We can provide the professional after -sales service to our all clients ;Here is our engineer Mike solved the problems for our customer ;Best supports !! Quicly reply !!Buy at ease , use at ease !!!FAQ
