Stepping Motor Driver 2 Phase Stepper Motor Drive Adapt for CNC

Basic Info

Model NO.	DV
Transport Package	Carton Box/Woody Box
Specification	Power Rating: 0.4KW-22KW Input Voltage: 220V-380V
Origin	China
HS Code	850110
Production Capacity	50000

Product Description

Stepper motor driver

Brand: K-DriveCertificate: CE, RoHS
RS485 Communication Controlling Type Stepper Drive

Product features

Strong compatibility and scalabilityIt is compatible with pulse signal input and I/O internal control mode. One drive is with multiple functions bringing more expansion possibilities, greatly reducing system costs. RS485 CommunicationWith RS485 communication connection, based on standard ModbusRTU protocol, it can support multi-axis RS485 motion control network. DE series pulse type closed-loop driver

Stepping Motor Driver 2 Phase Stepper Motor Drive Adapt for CNC

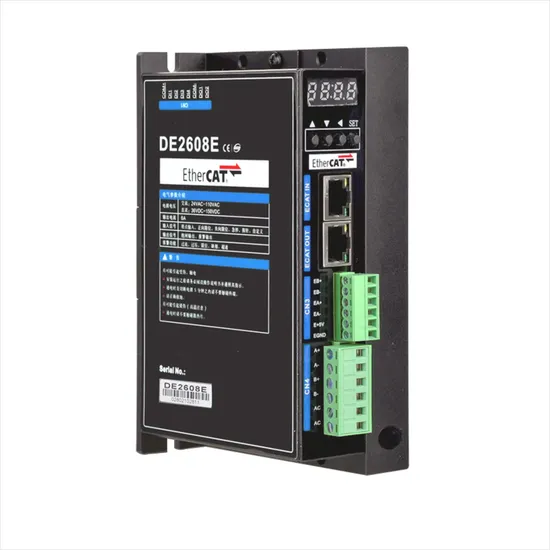

Product features"Closed-loop stepper" drive system is the innovative integration of closed-loop control technology into the stepper motor by Division according to market demand and prospects, creating a new A drive for performance. Successfu-lly solved the problems of dislocation and lost steps of the traditional stepping system, and further improved the sp-eed and acceleration of the stepping motor can effectively reduce the cost of equipment use. Closed-loop stepping not only has the same motor installation size as traditional stepping 28/36/42/57/60/86/110/130mm, etc., but also Simple and easy to set up, the performance is improved by more than 50% compared with the traditional stepping, and the price is less than half of the AC servo. It is the first choice for medium and low speed servo applications! EtherCAT FieId Bus CIosed Loop Step Drive Product Overview EtherCAT series bus-type stepper products are bus-type stepper drivers that add bus communication function on the basis of the original high-voltage pulse-type stepper drivers. Pick Using the EtherCAT bus communication inte-rface, based on the EtherCAT slave technology, the transmission rate of 100Mb/s realizes the real-time control and real-time data transmission of the servo system. only Support CSP, HM operation mode. The driving voltage is AC200V~240V, and it is suitable for various types of three-phase hybrid stepper with current below 7.0A and outer diameter of 86~130mm.into the motor. Compared with the traditional pulse servo driver, the driver is especially suitable for applications in long-distance, multi-axis linkage applications, such as manipulators, packaging machi-nery, etc.The wiring can be greatly reduced and the reliability of the drive operation can be enhanced. Bus-type closed-loop stepper driver EtherCAT series bus-type closed-loop stepping products are bus-type closed-loop stepping products that add bus communication function on the basis of DE series high-performance stepping closed-loop drivers.drive. Using the EtherCAT bus communication interface, based on the EtherCAT slave technology, the transmission rate of 100Mb /s realizes the real-time control and real-time data of the stepping system transmission. It has the advantages of high performance, high transmission speed and high reliability communication. EtherCAT series can drive 20/28/ 42/57/60/86 and other flange frame closed-loop stepping motor. The driver has abundant input and output interfa-ces and supports CSP, PP, and HM operating modes. Compared to conventional pulsed drives, this drive is parti-cularly suitable for It can greatly reduce the wiring and enhance the reliability of the drive operation.
Why choose K-Drive variable frequency drive?
In the trend of advocating smart and simple industrial automation, environmentally friendly products, value-added solutions, K-Drive, as one of the world's leading drive manufacturers aggressively investing in R&D, production, and continuous quality improvement, is well positioned to provide its customers with technology-driven, performance-outstanding products such as VFDs, wind power converters, servo drives, HEV/EV drives, helping its customers save energy and increase industrial productivity with sustainability on the one hand, and enhancing their entire value-chain quality, delivery, and services on the other hand.

Production

In production, rigorous quality control is implemented on components, circuit boards, and the finished goods, assuring products without defects.
K-Drive VS Other brands

Performance	Common brands	K-Drive
Applicable motors	Asynchronous motors	Asynchronous /synchronous motors
Starting torque	2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop vector control)	0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop vector control)
Speed adjustable range	1:100 (SVC), 1:1000 (VC)	1:200 (SVC), 1:1000 (VC)
Ambient temperature (no derating required)	-10-40ºC	-10-50ºC (for most of the models)
Rated input voltage	208VAC-400VAC	208VAC-480VAC
Communication	Modbus RTU//ASCII	Modbus RTU//ASCII Profibus-DP, CANopen, etc.
Position control (fixed length, or angular positioning)	×	√
Field weakening control	×	√
Autotune online	Online	Online & Offline
Short-time ramp-up	Trip	No trip
Customized features (software and/or hardware)	Unprocurable or no experience	Procurable with rich experience

K-Drive AC motor drives are able to replace AC drives and inverters of the following brands: , LS, Toshiba, Siemens, Lenze, Yaskawa, Mitsubishi, Delta, Hitachi, WEG and etc;
