Y Axis Lathe CNC Metal Turning Lathe Milling Machine Fanuc Siemens GSK Controller

Basic Info

Model NO.	HTC-5661MY
Power Source	Electric
Controlling Mode	CNC
Automatic Grade	Automatic
Setting Mode	Floor-type
Precision	High Precision
Certification	CE, ISO 9001
Condition	New
OEM	Yes
Spindle Nose Type	A2-6
Speed	4200rpm
Motor	11kw
Bar Diameter	52mm
X Axis Travel	230mm
Z Axis Travel	610mm
Tool Center Distance	100mm
Chuck	Hydraulic Chuck
Max Swing Over Bed	560mm
Through Hole of Spindle	66mm
Working Length	500mm
Tool	Power Tool Turret
Tailstock Taper	Mt4
Color	Customization
Transport Package	Wooden Package
Specification	255017601900mm
Trademark	JOINT
Origin	Shenzhen, China
HS Code	8458110090
Production Capacity	20 Sets

Product Description

Y axis lathe cnc metal turning lathe milling machine FANUC Siemens GSK Controller

1. Equipped with imported power turret + power head and servo control, high precision automatic tool change, and radial and axial milling function.2. Adopted multiple pipeline and big power coolant system, ensure the surface fineness of the turn-milling.3. Spindle brake system, assured the accuracy of milling.4. With Y axis power motor, realize side multi-position drilling hole or side milling groove, drilling hole etc function.

High precision and high quality create high velue

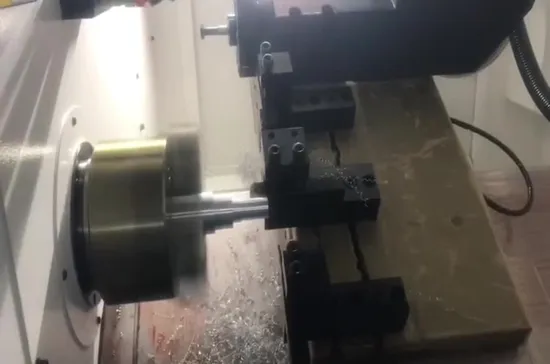

This series of slant bed high speed CNC lathe adopts imported or domestic high-performance CNC system and matched motor and drive to realize two-axis linkage processing. Equipped with Taiwan axle sleeve spindle, with high precision, high speed, smooth operation and other characteristics, optional hydraulic chuck or collet chuck, can effectively save the work piece clamping time. The machine is suitable for machining shaft parts, thread, arc cone and inner and outer surfaces of the rotating body. Widely used in the automobile industry, electronic industry, motorcycle, home appliances, furniture, lighting and other industries such as rotating body products processing.

Features

1. Slant bed type casting, two axis linear way apply to high precision processing.2. Taiwan linear way ensured the stability of accuracy.3. Taiwan high speed and high accuracy spindle, Japan high precision bearing.4. Hydraulic chuck, hydraulic station and hydro-cylinder are optional.5. Chain type auto conveyor is optional.6. GSK control system or KND control system.

Specification

Model		HTC-5661MY
Max. swing diameter over bed	mm	560
Max. swing diameter over carriage	mm	190
Max. length of workpiece	mm	500/465/300 (With Power tool turret)
Spindle head (Chuck optional)		A2-6 (8")/ A2-8 (10")
Spindle motor	kw	11
Spindle rotation speed	rpm	4200/3000
Spindle through-hole diameter	mm	Φ66/Φ87
Bar diameter	mm	Φ52/Φ75
X axis limited travel	mm	230
Z axis limited travel	mm	610
Tool post		10T/12T servo tool turret12T power tool turret8T/10T/12T hydraulic tool turret
Height of tool turret center	mm	100
Diameter of tailstock sleeve	mm	80
Trevel of tailstock sleeve	mm	80
Max. travel of tailstock	mm	450
Tailstock sleeve taper		MT4
Bed type and slant angle		Whole body slant type 30°
Dimension	mm	255017601900
Weight	kg	3200

Standard accessories

1. GSK controller system with motor2. Fully enclosed cover3. Hydraulic three jaw chuck4. 12T power tool turret5. Power head with Y axis6. Hydraulic station7. Spindle brake8. Foot switch9. Hydraulic tailstock10. Auto lubrication system11. Workpiece coolant system12. Two axis inner encoder feedback system13. Working light14. Alarming light15. Guide way cover16. Tool and tool box17. Operation manual

Optional accessories

1. Fanuc controller system2. Chain type conveyor

Industry Focus Aeronautical parts Hardware Parts Multi-angle part

Core Technology

Provide customer apllication solution Joint company amassed abundant database, can fast provdie applicarion case of production technology beat, machine model selection, machining technology optimization, tool choose, suggest turning and milling, etc. In order to help customer improve produce efficiency, improve machining precision.

Can provide automatic feeding solution
Combined customer's parts machining requirement and technology, design matching material automatic feeding production line, included Truss robot, Feeding tray, etc. Also can continue automatic line remouled of cnc lathe machine.
Provide customization products for customer
Aim at small axle type, plate type parts machining for automobile brake dics, etc, devolped variety different machining requirements samll cnc lathe machine. Also can according to customer requirements, customized model for multiaxis turning and milling machining, double spindle machining, etc.

1. National High-tech Enterprose2. Shenzhen famous brand "JOINT"3. Member of China Quality Association4. Member of China Machine Tools Association5. Vice-chairmen of Shenzhen Machinery Association6. CE certification on milling machine, grinidng machine and machine center.7. More than 150 patents on invention, utility model patent and software copyright etc.8. Guangdong famous trademark

Y Axis Lathe CNC Metal Turning Lathe Milling Machine Fanuc Siemens GSK Controller

FAQ

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
